1. What is a Solvent Recovery Unit? Engineering Fundamentals

1.1 Definition

A Solvent Recovery Unit (SRU) — interchangeably called a Solvent Recovery Plant (SRP) or Solvent Recovery System (SRS) (see DEC's terminology explainer on how these terms relate to Solvent Reclaiming Equipment, SRE) — is an industrial air pollution control system that removes volatile organic compounds (VOCs) from a solvent-laden air (SLA) exhaust stream, concentrates them on a sorbent (typically activated carbon), and desorbs them in a form that can be condensed and reused as liquid solvent. Unlike destructive VOC abatement technologies that oxidize solvent into CO₂ and water, a Solvent Recovery Unit is a recovery, not a destruction, technology: the solvent is preserved as a saleable or reusable product.

1.2 How Activated Carbon Solvent Recovery Works — The Four-Stage Cycle

Every carbon-based SRU operates on a repeating four-stage cycle split across at least two adsorber vessels, so that one vessel can adsorb while the other regenerates:

• Adsorption: solvent-laden air passes through a fixed bed of activated carbon; VOC molecules are physically retained (adsorbed) onto the internal pore surface of the carbon by van der Waals forces, while clean air exits the bed and is discharged to the stack or recirculated to the process.
• Bed switching: once a bed approaches its designed breakthrough point (see §8.4), the process air is automatically switched to a second, regenerated bed so that adsorption is continuous while the first bed is regenerated.
• Desorption (regeneration): the loaded bed is stripped of solvent using nitrogen, steam, or hot air/vacuum (see §9), reversing the adsorption equilibrium and releasing a concentrated solvent vapor stream.
• Condensation & recovery: the desorption vapor is cooled in a condenser (direct or indirect, sometimes assisted by refrigeration or brine cooling) until the solvent condenses to liquid; if immiscible with water, it is separated by decantation, and if miscible, it may require downstream purification (distillation, dehydration) to reach the target purity for reuse.

1.3 Adsorption Principles

Adsorption is a surface phenomenon: gas-phase VOC molecules migrate to and are held on the internal surface of a porous solid (the adsorbent) without a chemical reaction taking place. The driving force is the equilibrium partitioning of the VOC between the gas phase and the adsorbed phase, described by adsorption isotherms (e.g., Freundlich or Langmuir-type relationships) that link adsorbed quantity to gas-phase concentration at constant temperature. Physical adsorption (physisorption) is reversible, which is what allows the same carbon bed to be loaded and regenerated thousands of times over its service life. Key variables governing adsorption performance include the carbon's pore size distribution relative to the VOC molecule size, the VOC's molecular weight and polarity, gas velocity through the bed, temperature, and relative humidity of the inlet air.

1.4 Desorption Principles

Desorption is the reverse process: energy is supplied (as heat, a purge gas, or reduced pressure) to shift the adsorption equilibrium so VOC molecules leave the carbon surface and return to the gas phase at a much higher concentration than in the original SLA stream. Because desorption reconcentrates the VOC by a large factor (commonly 10–50×, depending on regeneration method and solvent), it enables efficient downstream condensation with a comparatively small heat-exchange duty. Complete desorption is neither achievable nor necessary in practice: a carbon bed retains a "heel" of residual solvent (working capacity is discussed in §8.5), and regeneration is optimized around economic and safety criteria rather than 100% removal.

1.5 Condensation & Solvent Purification

The desorbed vapor stream is condensed to recover liquid solvent. Water-immiscible solvents (e.g., toluene, xylene, hexane) separate cleanly from any condensed process water by gravity in a decanter. Water-miscible solvents (e.g., ethanol, IPA, acetone, THF) condense together with any process moisture picked up during steam regeneration, and typically require a downstream separation step — often distillation or a dehydration module — to reach a purity suitable for reuse in the originating process. Miscibility alone does not tell the whole story: many solvents form azeotropes — binary (solvent–water) or ternary (solvent–solvent–water, or solvent–solvent) mixtures that boil at a constant composition and cannot be separated by straightforward distillation — so purification design must check the full azeotrope behavior of the recovered mixture, not just whether the solvent is nominally miscible or immiscible with water. Where a problematic azeotrope exists, options include entrainer-assisted (azeotropic/extractive) distillation, pressure-swing distillation, or molecular-sieve-based dehydration, each selected based on the specific binary or ternary system involved. Recovered-solvent purity, not just recovery efficiency, is therefore a key design parameter: a plant with 99% VOC capture is only as useful as the reusability of what comes out the other end.

1.6 Closed-Loop Recovery Systems

In a closed-loop configuration, the regeneration gas (typically nitrogen) is continuously recirculated between the carbon bed, the condenser and back to the bed heater, with no gas vented to atmosphere during desorption. Closed-loop nitrogen systems allow near-total oxygen exclusion, which is important both for solvent stability (many recovered solvents are prone to oxidation) and for keeping the regeneration atmosphere outside the flammable range even at high VOC concentration. Closed-loop design is the basis of nitrogen (inert gas) regeneration systems and is discussed in detail in §9.1.

1.7 Dehydration Sequencing: First-Phase (Gas-Phase) vs. Second-Stage (Liquid-Phase) Dehydration

Where water is removed from the process matters as much as whether it is removed at all, for two independent reasons: energy consumption and byproduct contamination. It is useful to think of dehydration as happening in up to two distinct phases: a first-phase, gas-phase pre-dehydration step, acting on the SLA or the regeneration vapor before or during condensation, and a second-stage, liquid-phase dehydration step, acting on the already-condensed liquid solvent.

First-phase (gas-phase) pre-dehydration. Rather than only dehydrating the liquid condensate after desorption and condensation are already complete, some SRU designs selectively remove water while the stream is still in the gas/vapor phase, before it reaches that later liquid-phase step. DEC implements this first phase through three related technologies — DEC.ADM_PHD™ (Pulse Heat Dehydration), DEC.ADM_FDP™ (Fractional Dehydration Process) and the gas-phase DEC.ADM_MSU™ (Molecular Sieve Unit), suited to more complex mixed-VOC streams that include ketones — all acting during carbon regeneration itself and driven by the same underlying Kinetic Desorption Algorithm (DEC.KDA™), further tuned by AI/ML, which selectively isolates and condenses water vapor separately from the target solvents (an earlier "Selective Desorption Algorithm," SDA, has since been superseded by KDA across both processes). In both cases, the underlying principle is the same: removing water while still in the gas phase reduces the water load that the rest of the process (condensation, and any second-stage dehydration) has to handle, which can lower overall energy consumption and reduce or eliminate the need for a downstream second-stage dehydration step entirely. This is different from condensing moisture out of the SLA as a preliminary step and then re-evaporating it elsewhere in the air-handling train, which involves two separate phase-change energy penalties (condensation, then re-evaporation) instead of one, and can introduce a mildly acidic, solvent-contaminated water stream (e.g., containing trace acetic acid from ester hydrolysis) into ductwork or filter housings not designed for corrosion resistance.

Second-stage (liquid-phase) dehydration and its placement relative to distillation. Where a first-phase step is not sufficient on its own — or is not present — a second-stage, liquid-phase dehydration step [e.g. an Ultra-Dehydration System (UDS™) type module using molecular sieves] removes the remaining water from the already-condensed liquid solvent. When this second-stage dehydration is used ahead of a multi-column distillation train, sequencing still matters within the liquid phase: molecular sieves can act as a mild catalyst supporting the hydrolysis of the processed solvents. Placing the second-stage dehydration step before the full distillation train, rather than between two distillation columns, keeps any acid generated out of the distillate light stream and avoids it reaching at the top of the column. Removing water ahead of distillation also means the columns are fed an already-dry mixture, which is more thermally efficient than distilling a wetter feed and dehydrating partway through the train.

2. Why Recover Solvents? The Environmental and Economic Case

2.1 Environmental Benefits

Solvent recovery directly reduces VOC emissions to atmosphere, which lowers ground-level ozone and photochemical smog formation, reduces exposure to hazardous air pollutants (HAPs) for surrounding communities, and supports compliance with increasingly strict emission limit values under frameworks such as the EU Industrial Emissions Directive (IED) and US EPA regulations (see §12). Because the process recovers material rather than destroying it, it also avoids the combustion-related CO₂, NOx and natural gas consumption associated with thermal oxidation, giving solvent recovery a favorable position in most carbon-footprint comparisons versus destructive VOC abatement.

2.2 Economic Benefits

Recovered solvent directly offsets the cost of virgin solvent purchases, which is often the single largest driver of payback for an SRU (see §11.4). In processes with high solvent consumption — printing, coating, flexible packaging, battery electrode manufacturing — solvent purchase cost can dwarf both the CAPEX and OPEX of the recovery system, making the investment case straightforward once yearly solvent throughput crosses a facility-specific threshold.

2.3 Circular Economy & Decarbonization

Solvent recovery is a textbook circular-economy technology: instead of a linear "purchase virgin solvent → emit / incinerate" model, the solvent is captured, purified, and returned to the same process, cutting both upstream extraction/production emissions embedded in virgin solvent and downstream emissions from destruction technologies. For companies with ESG or net-zero commitments, SRUs are frequently one of the highest-return decarbonization investments available at a process-emissions level, because the reduction in purchased solvent is measurable, auditable, and directly tied to a cost saving rather than only a compliance cost.

2.4 Waste Reduction

Beyond air emissions, solvent recovery reduces the volume of spent-solvent waste that would otherwise require off-site disposal or incineration as hazardous waste, lowering waste-handling costs and the regulatory burden associated with hazardous-waste manifesting and transport.

3. Selection Criteria for a Solvent Recovery Unit

When selecting a Solvent Recovery Unit, there are several factors to consider, including:

• The SLA (Solvent-Laden Air) volume that needs to be treated by the VOC emission control system;
• The type of solvents being used and their breakdown;
• The yearly volume of solvent being used at site;
• The demanded stack emission limit, in order to comply with applicable local environmental regulations;
• The budget (CAPEX).

DEC offers a variety of Solvent Recovery Units (SRUs) to meet the needs of different industrial applications: the processes are safe and very efficient, allowing the recovery a wide range of solvents.

Here are some of the benefits of using a DEC.SRU™ (Solvent Recovery Unit):

• most referenced: DEC is rooted back in 1946, the most-referenced, with a succesful delivery of thousand of installations worldwide;
• award winning innovations, effective design, for fitting specific and/or and high demanding tasks;
• different configurations and flexible layouts: SMS™ (Smart Modular Systems) to CBS™ (Custom Built Systems);
• compliance with global environmental regulations and VOC emissions standards: TVOC values down to ≤ 50 mgC/m³ (or ≤ 20 mgC/m³, for SRUs equipped with DEC.ULE™);
• high recovery rates: DEC Solvent Recovery Units can recover up to 99% of the solvent input;
• easy to maintain and operate;
• low operating costs (OPEX): the activated carbon on-site regeneration process is a low-cost way to regenerate the adsorbent;
• full-electric version available (e-SRU™);
• environmentally friendly: Solvent Recovery Units can help to reduce VOC emissions, improve environmental compliance, including sustainability and net-zero targets;
• generate important savings (ROI, improving your bottom-line);
• guaranteed deliverables;
• extended warranty policies available;
• inspection and maintenance contracts, delivered through DEC SERVICE.

4. Technology Comparison: Activated Carbon Adsorption vs Thermal and Biological VOC Abatement

No single VOC abatement technology is universally optimal. The right choice depends on VOC concentration, solvent recoverability/value, flow rate, and whether the objective is recovery (recycling the solvent) or destruction (converting it to CO₂ and water). The table below compares the principal technologies on the criteria engineers actually use to shortlist a solution.

4.1 When Does Recovery Beat Destruction?

Activated carbon adsorption is generally the preferred technology whenever the recovered solvent has meaningful reuse or resale value and the VOC concentration is compatible with adsorption (not so dilute that bed sizing becomes uneconomic, not so concentrated/near-saturated that explosion-safety margins dominate design). Thermal oxidation (RTO/DTO/CTO) becomes more attractive when the solvent mixture is too complex or contaminated to be usefully recovered, when no local reuse exists for the recovered solvent, or when destruction efficiency requirements are so stringent that recovery alone cannot guarantee compliance. In practice, many multi-line facilities use both: SRUs on lines with high-value, recoverable single solvents (e.g., toluene-based printing), and thermal oxidation on lines with complex or low-value solvent blends.

4.2 Hybrid Configurations

Rotor/bed concentrators — hydrophobic zeolite, HCA™ or activated-carbon media in DEC.XBC_RBC™ (Rotary Bed Concentrator), DEC.XBC_SBC™ (Static Bed Concentrator) or DEC.XBC_FBC™ (Fluidized Bed Concentrator) configurations, part of DEC's XBC™ range — are frequently used upstream of both SRUs and oxidizers to handle very large, dilute air volumes: the concentrator adsorbs VOCs from a large low-concentration flow and desorbs them into a much smaller, higher-concentration stream that can then be fed to a right-sized downstream SRU or oxidizer, substantially reducing the size (and cost) of the final abatement equipment. The choice between rotary, static and fluidized bed formats depends on airflow, dust loading and pressure-drop constraints at the specific site.

5. Solvent Compatibility Guide

Not all solvents behave the same way on activated carbon, and not all are equally suited to each regeneration method. The table below summarizes engineering considerations for 17 commonly recovered solvents.

5.1 How to Read This Table for Design Purposes

Boiling point is the first-order indicator of desorption difficulty: low-boiling solvents (acetone, methanol, THF) desorb easily but achieve lower working capacity per adsorption cycle, so beds must be sized (or cycle times shortened) accordingly. High-boiling solvents (NMP, DMF, cyclohexanone) adsorb strongly — which is good for capture efficiency — but require more thermal energy (or a vacuum assist) to desorb completely, directly affecting regeneration technology choice (see §9). Water miscibility determines whether the recovered condensate can be used directly or needs a purification step — but miscibility is only a starting point: many of the solvents above also form binary (solvent–water) or ternary (solvent–solvent–water) azeotropes, which fix the composition reachable by simple distillation regardless of feed ratio and must be checked explicitly for the actual solvent blend being recovered, not inferred from miscibility alone. Multi-solvent processes are particularly exposed to this, since a ternary azeotrope between two process solvents and water can behave very differently from either solvent's individual binary azeotrope with water. Finally, flammability/peroxide-forming tendencies (acetone, hexane, THF, MEK) push the design toward inert (nitrogen) regeneration rather than open-air thermal desorption.

A related, practical risk in multi-solvent blends is light-component slip-through: many real-world inks and coating formulations include a proportion of light alcohols (ethanol, isopropanol) alongside heavier, more strongly adsorbing solvents. Because these alcohols are smaller, more volatile molecules with comparatively lower working capacity on carbon (see the Ethanol and IPA rows above), an SLA adsorption temperature that is not properly optimized for the specific blend can allow a disproportionate share of the alcohol fraction to pass through the bed unrecovered, even while the heavier solvent components are captured efficiently — with the practical consequence that recovery efficiency figures quoted for the "main" solvent in a blend can look good while the light-alcohol fraction is quietly under-recovered. This is a design and commissioning verification point (adsorption temperature, bed sizing against the full blend composition, not just its dominant component) rather than a fundamental limitation of carbon adsorption itself.

6. Industrial Applications

Solvent recovery is applied across a wide range of industries, each with characteristic VOC mixes, emission profiles and preferred technology configurations.

6.1 Flexible Packaging

Flexible packaging converting — laminating, pouch and film production, substrate coating — uses large volumes of ethyl acetate, ethanol, toluene, IPA and MEK-based adhesives and coatings, generating high-volume, moderate-concentration SLA streams. Activated carbon SRUs are the dominant technology because solvent purchase volumes are large and recovered solvent is routinely reused directly in the process, giving fast payback. Engineering challenges include managing multi-solvent blends and matching regeneration technology to the dominant solvent in the mix.

6.2 Printing

Rotogravure, flexographic and heliogravure printing presses use ethyl acetate, ethanol, toluene, IPA and MEK-based inks at high volumes, generating exhaust streams similar in character to flexible packaging but driven by ink formulation rather than substrate coating (see also the rotogravure, flexo and lamination case studies). Engineering challenges include managing multi-solvent ink blends and matching regeneration technology to the dominant solvent in the formulation.

6.3 Coating

Industrial and functional coating lines — including coil coating, wood coating and protective/specialty coatings — emit toluene, butyl/propyl acetate and ketone-based (MEK) VOCs, typically at higher and more consistent concentrations than paint spray booths. Activated carbon SRUs recover these solvents efficiently given their strong adsorption behavior and the higher-value reuse case in the coating formulation.

6.4 Adhesives

Solvent-based adhesive manufacturing and application (lamination, tape coating) generate ethyl/butyl acetate, toluene and hexane emissions comparable to flexible-packaging and printing operations, with similar SRU suitability.

6.5 Automotive

Automotive OEM and Tier-1 paint shops combine high air volumes from spray booths with adhesive and sealant application processes; VOC abatement is frequently a mix of RTO for booth exhaust and SRUs for concentrated, high-value solvent streams from specific process steps.

6.6 Aerospace

Composite layup, adhesive bonding and specialty coating processes in aerospace manufacturing use high-purity solvents (acetone, MEK, IPA) where both emission control and solvent traceability/purity are important, favoring carbon adsorption with careful purity-focused condensate handling.

6.7 Chemical Industry

Chemical process vents can contain complex, often single-solvent, high-concentration streams (e.g., reactor vents, dryer exhausts) well suited to solvent recovery, particularly where the same solvent is reused as a process input (e.g., hexane in extraction, toluene in synthesis).

6.8 Pharmaceutical Industry

Pharmaceutical manufacturing frequently uses high-purity solvents (acetonitrile, methanol, THF, acetone, IPA) in synthesis, purification and cleaning; GMP considerations around cross-contamination and solvent traceability make dedicated, well-characterized recovery trains particularly valuable, and vacuum regeneration is often favored for heat-sensitive or high-boiling solvents.

6.9 Battery Manufacturing

Lithium-ion electrode coating (NMP-based cathode processes, increasingly aqueous anode processes) generates high-value NMP-laden air streams; NMP's high boiling point makes vacuum-assisted regeneration a common choice, and recovery economics are typically very strong given NMP's cost and consumption volumes (see the NMP solvent recovery case study).

6.10 Electronics

Cleaning and coating processes in electronics manufacturing use IPA, acetone and other high-purity solvents; low-contamination recovery trains and careful moisture management are priorities given sensitivity to trace residues.

6.11 Paint

Paint application — spray booths for architectural, industrial and general-finishing paints — typically emits xylene, toluene and glycol-ether-based VOCs across large exhaust air volumes but at comparatively low, humidity-affected concentrations. Because booth exhaust volumes are large relative to VOC mass loading, paint lines are among the most common candidates for a concentrator-plus-SRU or concentrator-plus-oxidizer hybrid configuration (see §4.2), substantially reducing the size of the final abatement equipment.

6.12 Composites

Composite manufacturing (styrene-based resin systems, solvent cleaning of tooling) presents polymerization-fouling risks on carbon beds (see §7.7) that must be specifically engineered around, sometimes favoring alternative technologies or specialized carbon-protection measures.

7. Engineering Design Considerations

7.1 Airflow & VOC Concentration

System sizing starts from the total SLA airflow (Nm³/h) and the VOC concentration profile (average and peak), which together define both the mass loading the carbon must handle and the bed cross-section needed to keep face velocity — and pressure drop — within acceptable limits. Sizing on peak values alone is not sufficient: the minimum airflow and minimum VOC concentration the plant will actually see in service must also be defined, since these set the required turn-down ratio (the ratio between maximum and minimum design flow/load the SRU must handle reliably). At the low end of that range, face velocity can drop enough to worsen channeling and widen the mass transfer zone (see §8.5), while VOC concentration can fall low enough to weaken breakthrough detection. As a practical minimum, most SRUs are designed to turn down reliably to roughly 10–25% of rated SLA airflow without instability; process lines with wider swings (e.g., batch operations, intermittent dryers) should specify the actual minimum expected airflow and VOC concentration explicitly, rather than assume the plant will scale down linearly from the peak design point, since fan, valve and instrumentation turn-down capability — not just bed sizing — govern how low the system can actually go.

7.2 Humidity

Water vapor competes with VOC molecules for adsorption sites on activated carbon, reducing working capacity for hydrophilic carbons at high relative humidity; humidity must therefore be characterized and, where excessive, addressed with pre-cooling/dehumidification or carbon grades selected for humidity tolerance.

7.3 Oxygen Concentration

Oxygen concentration in the regeneration atmosphere is a primary safety parameter for inert (nitrogen) systems: oxygen ingress must be kept below the design threshold to stay outside the flammable envelope at the VOC concentrations reached during desorption (see §13).

7.4 Pressure Drop

Bed depth, particle size and face velocity all trade off against pressure drop, which drives fan sizing and electrical energy consumption; pressure drop typically increases over the carbon's service life as fines accumulate and channeling or partial fouling develops.

7.5 Solvent Mixtures

Multi-solvent streams desorb at different rates and temperatures; regeneration must be designed (temperature profile, purge duration) around the least-easily-desorbed component to avoid progressive accumulation ("heel build-up") of heavier solvents on the carbon over repeated cycles.

7.6 Temperature

Inlet air temperature affects adsorption capacity (higher temperature generally reduces physisorption capacity) and must be considered alongside seasonal variation and any upstream process heat. As a practical benchmark, adsorption performance for many solvents falls off sharply above roughly +35°C SLA temperature — on the order of -3% capacity per +1°C increase beyond that point — which makes reliable pre-cooling (see §7.11) a genuine performance issue in warm climates or during summer operation, not just a comfort margin.

7.7 Fouling, Dust & Polymerization

Particulates (dust, overspray, fibers) foul the carbon bed surface and increase pressure drop; some solvents (styrene, unsaturated resins, certain acrylates) can polymerize on the hot carbon surface during regeneration, progressively blinding pores. Upstream filtration and, where polymerization risk exists, temperature-limited regeneration profiles or alternative technologies are used to mitigate this.

7.8 Corrosion

Chlorinated or acidic VOC streams can generate corrosive byproducts (e.g., HCl) during thermal regeneration; materials of construction (stainless steel grades, coatings) must be selected accordingly.

7.9 Utility Availability

Available site utilities — electrical capacity, cooling water/chilled water (CWS/BCS), thermal fluid (TFS, hot oil or steam), nitrogen supply/generation (N2X) — directly influence which regeneration technology (§9) is most cost-effective at a given site.

7.10 Activated Carbon Quantity & Sizing

More carbon is not automatically better. A carbon bed is sized against a specific SLA airflow and VOC concentration profile, and the resulting face velocity and residence time through the bed are part of that calculation, not an afterthought. Oversizing the carbon quantity for a given vessel cross-section and airflow reduces the linear velocity of the SLA through the bed and increases residence time, which sounds protective but can actually reduce the effective utilization of the carbon's adsorption capacity relative to a correctly sized bed, while also increasing pressure drop (see §7.4) and therefore fan power consumption. Undersizing, conversely, risks early breakthrough (see §8.4) under peak or upset conditions. Because flow rate, VOC concentration and temperature can all vary meaningfully in real operation — flexible packaging converting lines are a typical example — carbon quantity and bed geometry should be sized (and, where conditions vary widely, controlled) against the actual expected operating envelope, including its minimum and maximum (see turn-down ratio, §7.1), rather than against a single nominal design point with an arbitrary safety margin added on top. A supplier quoting extra carbon as a blanket margin is worth a direct question: is the added quantity compensating for a specific, named design gap (e.g., humidity control, SLA pre-cooling, carbon quality) that should instead be addressed directly?

7.11 Cooling System Selection

An SRU typically has several distinct cooling duties, not just one: SLA pre-cooling ahead of adsorption (bringing incoming air from a typical +50–70°C down to the +30–35°C range that favors adsorption, depending on relative humidity), pre-cooling of the regeneration loop (nitrogen or vapor) ahead of final condensation, cooling for any molecular-sieve regeneration loop, condensation duty for a distillation column's overhead vapor, and the condenser-side cooling load for a chiller (BCS) where refrigeration is used. Common cooling system options include open cooling towers, closed-circuit (dry) coolers, air-cooled chillers, and adiabatic (hybrid wet/dry) systems, each with different water consumption, footprint, and climate sensitivity. Open cooling towers are generally the most space- and energy-efficient option in warm climates, but consume make-up water and require water treatment; dry coolers and air-cooled chillers avoid water consumption but their achievable approach temperature is climate-limited — a dry-air cooler typically cannot cool a water circuit closer than about 10–15°C above ambient temperature, so in warm/hot regions (ambient above roughly +20°C) they may not reliably reach the target SLA or condensation temperatures, with direct knock-on effects on adsorption capacity (see §7.6) — particularly for multi-solvent blends where under-cooling can allow lighter components to slip through unrecovered (see §5.1). The right choice is climate- and site-specific rather than universal, and should be evaluated against local water availability and ambient temperature profile, not selected solely to minimize water use on paper.

7.12 SLA Filtration

Particulate filtration of the SLA stream upstream of the carbon bed protects downstream components (heat exchangers, fans) and extends carbon service life by preventing particulate fouling of the bed surface (see §7.7). Static (cell-type) filters are simple but require periodic manual replacement, which — depending on filter housing design — can require entry into a confined filtration enclosure; automatic or continuous roll-media filtration systems avoid this by advancing a fresh section of filter media without stopping the process or requiring operator entry, and typically offer a substantially longer service interval between media changes than static cells. Where static filters are used, confined-space entry procedures should account for the risk of localized oxygen depletion inside enclosed filtration housings, particularly on nitrogen-regenerated systems (see §13.2).

8. Activated Carbon Engineering

8.1 Pore Structure

Activated carbon's performance is governed by its pore structure: micropores (<2 nm) provide most of the adsorption surface area and dominate capacity for small VOC molecules, mesopores (2–50 nm) assist transport into the micropore network, and macropores (>50 nm) act as feeder channels. Carbon grades are selected/activated to match the pore-size distribution to the target VOC molecule size.

8.2 BET Surface Area

BET (Brunauer–Emmett–Teller) surface area, typically 800–1,500+ m²/g for VOC-recovery grade carbons, quantifies the total available adsorption surface per unit mass and correlates broadly with adsorption capacity, though pore-size match to the target molecule matters as much as raw surface area.

8.3 Adsorption Index (Vapor-Phase Activity)

The iodine number is a widely quoted carbon-quality figure, but it is a liquid-phase test and is not the appropriate index for VOC-recovery (vapor-phase/gas-phase) activated carbon; using it to specify or compare gas-phase adsorbents can be misleading. For gas-phase adsorbents, DEC specifies and benchmarks carbon quality using vapor-phase adsorption indices instead: the butane index (ASTM D5742), the CTC (carbon tetrachloride) index (ASTM D3467 — historically the most common and accurate KPI, though carbon tetrachloride's status as a known carcinogen means it is no longer used as a standard reference test), the ETAC (ethyl acetate) index, and the benzene index (JIS K 1474). A higher adsorption index indicates higher activity and a greater capacity for adsorbing VOC molecules. See DEC's activated carbon performance reference for the full methodology behind each index.

8.4 Breakthrough Curves

A breakthrough curve plots outlet VOC concentration versus time (or bed volumes treated) for a bed under constant inlet conditions; it starts near zero, then rises as the bed's adsorption capacity is consumed, defining the "breakthrough point" at which the bed must be switched to regeneration to avoid VOC slip to atmosphere. Breakthrough curve shape depends on the mass transfer zone (§8.5), flow rate, and adsorption kinetics.

8.5 Mass Transfer Zone (MTZ) & Working Capacity

The Mass Transfer Zone is the portion of the bed actively transferring VOC from gas to solid phase at any moment; upstream of the MTZ the carbon is saturated, downstream it is still fresh. A narrow MTZ (fast kinetics, well-matched pore structure) allows a bed to be used closer to its full equilibrium capacity before breakthrough. "Working capacity" — the capacity actually usable in cyclic service, always lower than fresh-carbon equilibrium capacity — is the number that should drive bed sizing, not laboratory-measured maximum capacity.

8.6 Carbon Aging & Replacement

Carbon capacity declines over years of service due to irreversible fouling (heavy residues, polymerization products, oxidation byproducts) that block pores and cannot be removed by normal regeneration; this is distinct from the reversible loading/unloading of the operating cycle. Aging rate depends on solvent chemistry, regeneration completeness, and any contaminants in the SLA stream; carbon replacement intervals typically range from several years to a decade-plus depending on service severity, and should be verified periodically against breakthrough performance rather than assumed on a fixed calendar.

9. Regeneration Technologies: Nitrogen, Steam & Vacuum

Regeneration technology selection is one of the most consequential SRU design decisions, driving CAPEX, OPEX, solvent quality, and safety architecture.

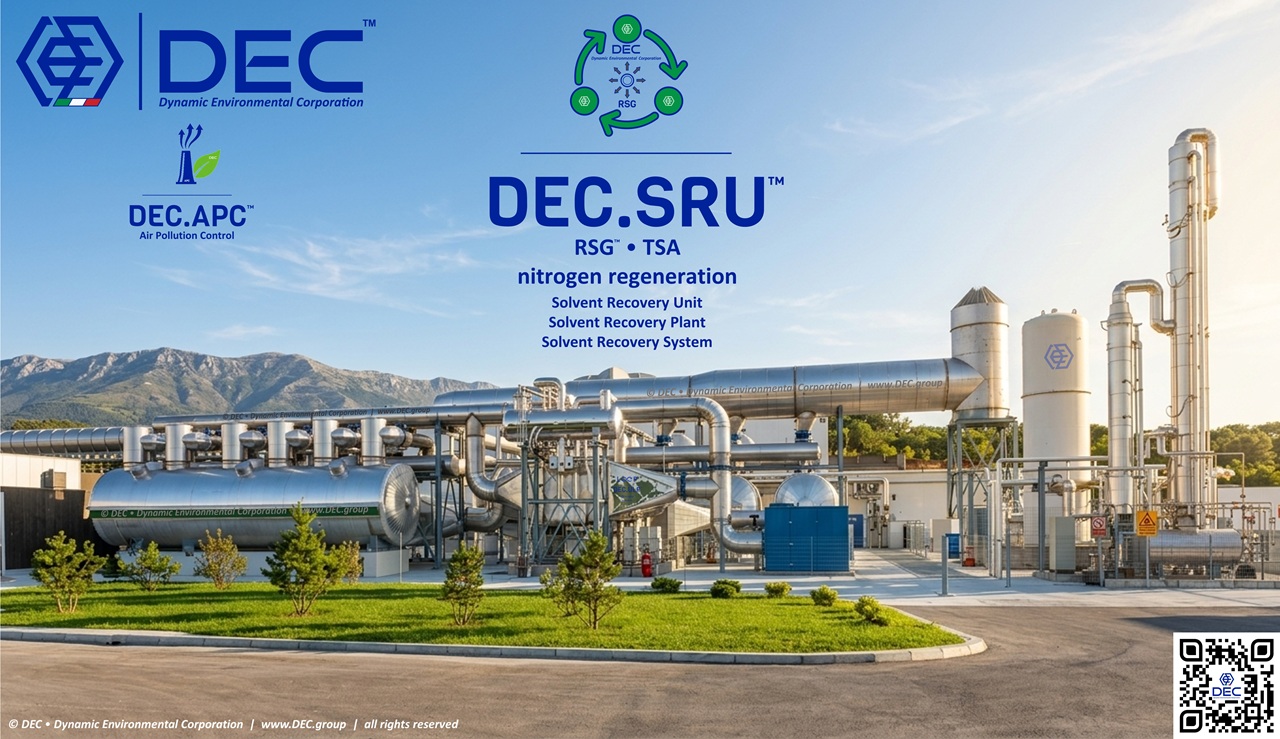

9.1 Nitrogen (Inert Gas) Regeneration — TSA with N₂ (e.g., DEC.SRU_RSG™)

Nitrogen regeneration is also referred to as steamless regeneration or dry regeneration, since — unlike steam regeneration (§9.2) — no water is introduced into the desorption loop at any point in the cycle. A closed loop of heated nitrogen strips solvent from the carbon bed; the nitrogen is then cooled to condense the solvent and recirculated. Advantages: excellent for flammable, oxidation-sensitive or peroxide-forming solvents (acetone, MEK, THF, hexane) since the atmosphere stays inert throughout the cycle; produces a dry, non-aqueous condensate for water-immiscible solvents, easing purification; unlike steam regeneration (§9.2), there is no need to produce steam on-site, since heating can be supplied indirectly through a Thermal Fluid System (TFS) or, in the full-electric e-SRU™ configuration, entirely by electrical heating — avoiding the boiler, resin-exchanger and makeup-water dependencies described for steam regeneration (see §9.2). Disadvantages: requires a nitrogen supply or on-site generation; note that since the RSG™ loop runs slightly overpressurized with nitrogen, leak-tightness is not a critical safety issue in the way it is for vacuum systems — any leakage tends to show up as higher nitrogen make-up consumption rather than oxygen ingress — though oxygen-ingress monitoring is still maintained as a standard safeguard (see §13.2). Operating costs: driven by regeneration heating energy and nitrogen make-up losses; generally moderate.

9.2 Steam Regeneration — TSA with Steam (e.g., DEC.SRU_RSV™)

Live steam is passed through the loaded bed, providing both heat and a stripping medium; the steam/solvent vapor mixture is then condensed, and water-immiscible solvents separate from the condensed steam. Advantages: very effective, well-proven desorption for a wide range of solvents where steam supply is already available on-site (common in process industries); rapid, efficient heat transfer. Disadvantages: introduces water into the condensate, complicating recovery of water-miscible solvents (ethanol, IPA, acetone) which then require downstream dehydration; not preferred for hydrolysis-sensitive solvents. Where steam is not already available on-site, it must be generated specifically for the SRU, which brings its own dependencies: a dedicated boiler (with associated permitting, burner fuel supply and stack emissions of its own), a resin exchanger (water softening/demineralization train) to condition boiler feedwater and prevent scale build-up and fouling in the boiler and heat-exchange surfaces, and a reliable, adequately sized source of makeup water — a real constraint in water-stressed regions or sites without existing process water infrastructure. These dependencies should be evaluated alongside the regeneration technology choice itself, since they can add meaningfully to both CAPEX (boiler package, resin exchanger skid, water treatment) and OPEX (boiler fuel, resin regeneration chemicals, water consumption and any associated effluent). Operating costs: driven by steam consumption; economical where low-cost steam is already generated on-site — but a further cost that is often underestimated at the specification stage is wastewater treatment for the aqueous (desorbate) fraction: even after decantation, the separated water phase typically retains a residual solvent load (governed by that solvent's water solubility and any azeotrope behavior, see glossary), so this stream generally cannot be discharged untreated and must be routed to on-site or third-party wastewater treatment, adding a recurring OPEX line that should be budgeted alongside steam consumption when comparing regeneration technologies.

9.3 Vacuum Regeneration — T+VSA (e.g., DEC.SRU_RTV™)

The bed is regenerated under reduced pressure, which lowers the effective boiling point of the adsorbed solvent so desorption can proceed at a lower temperature than atmospheric-pressure thermal regeneration — particularly valuable for high-boiling or thermally sensitive solvents (NMP, DMF, cyclohexanone) — but not ideal for other solvent families such as esters and alcohols (e.g., ethyl acetate, ethanol, isopropanol), where vacuum alone is often not sufficient to fully desorb the compound and higher regeneration temperatures, equivalent to a plain TSA cycle (as used in the RSG™ nitrogen process), still need to be applied. Advantages: lower regeneration temperature reduces thermal degradation risk and can improve recovered-solvent purity for heat-sensitive compounds; effective for high-boiling solvents that are difficult to desorb by heat alone. This same lower-temperature operation is also a genuine trade-off rather than a pure benefit: vacuum regeneration is often run at relatively modest temperatures (on the order of 150–180°C) specifically to save regeneration energy, but if that temperature is not sufficient to fully desorb the highest-boiling components present in a given solvent mixture, incompletely-removed residues accumulate on the carbon cycle after cycle, which can shorten effective carbon service life compared with a regeneration cycle run hot enough to fully strip the bed — so the energy saved on lower-temperature operation needs to be weighed against any resulting increase in carbon replacement frequency (see §8.6). Disadvantages: vacuum equipment (vacuum pumps, tight vessel and valve sealing) adds mechanical complexity; because the adsorber vessels operate under vacuum rather than at atmospheric pressure like RSG™, they are pressure-retaining equipment subject to PED/ASME pressure-equipment design codes, adding engineering, documentation and fabrication cost that a plain vessel-sizing comparison would miss. This also has a practical sourcing consequence: RSG™ adsorbers, operating at atmospheric pressure, can in many cases be fabricated locally — even within the customer's own scope, close to the installation site — under DEC's design and technical supervision, whereas RTV™'s PED/ASME-certified vacuum adsorbers usually cannot be sourced locally in the same way and require fabrication at specifically certified manufacturing sites; for many project locations this means international fabrication and shipment of large pressure vessels, and the resulting freight, export packing, customs clearance and extended transit time can add substantial logistics cost and lead time on top of the fabrication premium itself. Even though condensate water content is low under vacuum regeneration, a second-stage dehydration step is mandatory to reach reuse-grade purity, adding a further process stage beyond condensation; vacuum systems are inherently more leak-sensitive than atmospheric or slightly pressurized systems, and locating small air-ingress leaks (through valve stems, flanges, instrumentation ports) can require extended, methodical troubleshooting because the symptom — gradual oxygen creep or capacity loss — is not always immediately traceable to a specific fitting. This added mechanical complexity carries a real cost beyond the base equipment price: vacuum trains generally require higher-skilled maintenance and supervision staff than atmospheric or nitrogen-loop systems, since diagnosing vacuum-integrity issues is a more specialized competency than routine valve/seal upkeep, and this can mean additional training or a dedicated service contract rather than relying solely on general plant maintenance staff. Spare-parts strategy is also more demanding: because unplanned vacuum-pump downtime stops regeneration (and therefore adsorption capacity) entirely, a spare vacuum pump held on standby is effectively mandatory rather than optional for continuous-duty installations, adding to both the initial spares inventory cost and ongoing spare-parts carrying cost compared with nitrogen or steam regeneration trains. Operating costs: driven by vacuum-pump electrical consumption plus, since RTV™ is a combined temperature-and-vacuum-swing (T+VSA) process, the same heating and nitrogen make-up costs relevant to the RSG™ process, together with higher maintenance attention to seals; certain corrosion-resistant vacuum pumps and compressors (e.g. specific bellows-sealed scroll-type designs above defined inlet-flow and pressure-ratio thresholds, with wetted surfaces in materials such as stainless steel or aluminum alloys) can fall within the EU Dual-Use Regulation (EU) 2021/821's Annex I materials-processing control entries, or equivalent control lists in other jurisdictions, and so require export-control classification and, potentially, an authorization before shipment; project teams should verify current classification with their procurement/compliance function during specification, since control list thresholds and entries are periodically amended.

9.4 Comparing the Three Regeneration Methods

Practical takeaway: on paper, vacuum regeneration (RTV™) may look like a refined option — lower regeneration temperature, reduced thermal degradation risk, and a route to handling high-boiling solvents that are hard to desorb by heat alone. In practice, once the full picture is accounted for — added mechanical complexity, higher-skilled maintenance and supervision requirements, a mandatory spare vacuum pump, a mandatory second-stage dehydration step, higher leak sensitivity, comparable heating and nitrogen make-up costs on top of vacuum-pump electricity, PED/ASME-certified vessels that usually cannot be sourced locally (unlike RSG™'s atmospheric adsorbers) and so add international fabrication and shipping logistics cost, and reduced effectiveness on esters and alcohols (e.g., ethyl acetate, ethanol, isopropanol) where TSA-equivalent temperatures are needed anyway — nitrogen regeneration (RSG™) ends up outperforming RTV™ for the majority of real-world applications, with vacuum regeneration reserved for the minor specific cases where its advantages are actually decisive rather than theoretical.

10. Energy Efficiency

Regeneration heating is normally the largest single energy consumer in an SRU, which makes energy recovery the single highest-leverage efficiency lever available to plant designers. Heat recovery between the hot regeneration gas leaving the bed and the cold gas returning from the condenser can substantially cut net energy input, and is the design principle behind DEC's ULP™ (UltraLoop) energy recovery technology within the ERS™ Energy Recovery Solutions range: by recovering thermal energy that would otherwise be rejected at the condenser and returning it to the regeneration loop, ULP™ directly cuts the specific energy consumption of the recovery cycle, lowering both OPEX and the carbon intensity of the recovered solvent. Thermal Fluid Systems (TFS) provide a stable, closely-controlled heating medium for indirect bed heaters and are common where precise temperature control (avoiding local overheating/polymerization) matters. Electrical heating, used in full-electric (e-SRU™-type) configurations, avoids on-site combustion and can align with facilities decarbonizing their utility mix, though electricity cost per kWh should be compared against gas/steam alternatives — and pairing electrical heating with ULP™-style heat recovery further improves the economics of the full-electric route. The efficiency mechanism is worth understanding directly: electrical heating elements can deliver thermal energy straight into the regeneration air stream, on demand, whereas a Thermal Fluid System requires a secondary heat-transfer fluid to be kept circulating and at temperature so it is ready whenever heat is needed — meaning some thermal energy is spent maintaining the TFS loop even during periods when no regeneration cycle is actually calling for heat, a standing loss that direct electrical heating avoids. Heat pumps are increasingly used to recover low-grade waste heat from condenser cooling duties and upgrade it for use elsewhere in the regeneration cycle, a role that overlaps directly with ULP™'s energy-recovery function. Specific energy consumption (kWh per kg of solvent recovered, or per Nm³ treated) is the standard metric for comparing SRU energy efficiency across designs and vendors, and it is the metric on which energy-recovery investments like ULP™ should be justified and tracked.

11. Economics: CAPEX, OPEX, ROI & Payback

11.1 CAPEX

Capital cost is driven primarily by airflow (vessel and fan sizing), regeneration technology (vacuum and steam infrastructure carry different cost profiles than nitrogen skids), materials of construction (corrosion allowance), and whether the plant is delivered as a pre-built modular skid (typically lower installation cost and faster deployment) or a fully custom-built system (higher engineering content, suited to constrained layouts or unusual process requirements). Regeneration technology choice also affects which pressure-equipment design code (PED/ASME) applies: RSG™ vessels operate at essentially atmospheric pressure (the loop's slight nitrogen overpressure, see §9.1, keeps them below typical PED/ASME thresholds and therefore generally exempt), while RTV™ vessels, operating under vacuum, are pressure-retaining equipment subject to PED/ASME design, fabrication and inspection requirements — adding engineering, documentation and fabrication cost that a simple vessel/fan sizing comparison would miss. This also affects sourcing: atmospheric RSG™ adsorbers can, in many cases, be fabricated locally — even within the customer's own scope, close to the installation site — under DEC's design and technical supervision, while RTV™'s PED/ASME-certified vacuum adsorbers usually cannot be sourced locally in the same way and must be built at specifically certified manufacturing sites, which for many project locations means international fabrication and shipment of large pressure vessels: freight, export packing, customs clearance and extended transit time can add substantial logistics cost and lead time on top of the fabrication premium itself, a factor worth weighing alongside the regeneration technology's process advantages.

11.2 OPEX

Ongoing costs include regeneration utility consumption (nitrogen, steam, or electricity), wastewater treatment for the solvent-laden condensate fraction on steam-regenerated systems, electrical power for fans and, where applicable, vacuum pumps, routine maintenance labor, and periodic activated carbon replacement. Well-designed SRUs are engineered to minimize OPEX per unit of solvent recovered, since OPEX directly erodes the economic benefit of solvent recovery.

11.3 Maintenance & Carbon Replacement Costs

Maintenance costs include routine inspection, valve and seal servicing (particularly for vacuum systems), instrumentation calibration, and periodic carbon replacement when breakthrough performance degrades below the design specification (see §8.6). Vacuum-regenerated systems carry a further consideration: they generally warrant higher-skilled maintenance and supervision staff than atmospheric or nitrogen-loop designs, and continuous-duty installations typically need a spare vacuum pump held on standby, adding to spares inventory cost. Structured adsorbent maintenance services (such as those delivered through DEC SERVICE) help ensure carbon life and mechanical reliability are tracked proactively rather than reactively.

11.4 Solvent Savings, ROI & Payback

The dominant economic variable is almost always the value of recovered solvent: yearly solvent throughput multiplied by recovery efficiency and current solvent purchase price. For high-throughput, high-value-solvent operations, payback periods can be short because avoided purchase cost alone offsets CAPEX; for lower-throughput or lower-value-solvent operations, the investment case rests more on compliance necessity and long-term OPEX savings versus destructive alternatives. A rigorous ROI evaluation should include CAPEX, installation, OPEX, carbon replacement reserve, avoided solvent purchase, and — where relevant — avoided hazardous-waste disposal cost, compared over the expected plant service life.

12. Environmental Compliance: BAT, BREF, IED & EPA

12.1 BAT & BREF (EU)

Under the EU framework, Best Available Techniques (BAT) are the reference techniques regulators expect installations to apply, and BAT Reference Documents (BREF) — including the Common Waste Water and Waste Gas Treatment/Management Systems BREF and sector-specific BREFs — document the associated emission levels (BAT-AELs) that permitted installations must demonstrate. Activated carbon adsorption is explicitly recognized within BAT/BREF documentation as a technique for VOC recovery and abatement, alongside thermal and catalytic oxidation and other techniques.

12.2 Industrial Emissions Directive (IED)

The IED is the EU's overarching legal framework requiring installations within its scope to operate under permits that set emission limit values informed by BAT conclusions; VOC/TVOC stack limits (commonly expressed as mgC/Nm³) are set at a permit level and are a primary driver of SRU emission-performance specifications, including whether supplementary polishing technology (e.g., DEC.ULE™) is needed to reach very low TVOC targets.

12.3 US EPA Guidance

In the United States, VOC emissions are regulated under the Clean Air Act framework, with facility-specific limits set through New Source Performance Standards (NSPS), National Emission Standards for Hazardous Air Pollutants (NESHAP) and state/local permitting under the US Clean Air Act (CAA); EPA technical guidance historically published through resources such as the P2 InfoHouse documents carbon adsorption as a recognized Reasonably Available Control Technology (RACT) / Best Available Control Technology (BACT) option for solvent-laden exhaust streams.

12.4 Sustainability, ESG & Circular Economy Reporting

Because solvent recovery reduces both emissions and purchased-material consumption, SRU performance data (recovery rate, tonnes of solvent recovered per year, avoided emissions) is directly usable in ESG and sustainability reporting, and is increasingly requested by customers and investors as evidence of decarbonization action at the process level.

13. Safety Engineering

13.1 ATEX & Explosion Prevention

SRUs handling flammable solvents are designed to ATEX (or equivalent) area-classification and explosion-proof equipment principles: zoning of hazardous areas, selection of certified electrical and instrumentation equipment for the classified zones, and process design that keeps the regeneration atmosphere outside the flammable envelope by controlling VOC concentration and oxygen level rather than relying on ignition-source elimination alone.

13.2 Oxygen Monitoring & Nitrogen Safety

Continuous oxygen monitoring in closed-loop nitrogen systems is a primary safety control, since oxygen ingress — through leaking valves, flanges, seals or instrumentation connections — can allow the regeneration atmosphere to drift toward flammable conditions as VOC concentration rises during desorption. Because inert-loop leaks are not always immediately obvious (a slow oxygen creep can persist for some time before an alarm threshold is reached), plants require a defined leak-detection and isolation procedure, and engineering teams should budget for the possibility that locating a specific leak point in a closed-loop system can require systematic, section-by-section isolation testing rather than a single quick check. Nitrogen systems also require standard inert-gas safety measures (confined-space and asphyxiation-risk controls) around vessels and enclosures where nitrogen could displace breathable air.

13.3 LEL Monitoring

Lower Explosive Limit (LEL) sensors are used at key points in the process (regeneration loop, condenser off-gas, enclosures) to provide continuous verification that VOC concentration remains within the safe operating envelope, feeding automated interlocks that can dilute, isolate or shut down the affected section if the LEL setpoint is approached.

13.4 Fire Protection & Activated Carbon Ignition

Activated carbon can support smoldering combustion under certain conditions (notably with strongly oxidizing adsorbates or hot-spot formation from uneven regeneration), so temperature monitoring within the bed, controlled regeneration temperature profiles as part of a broader fire-prevention strategy, and dedicated fire-detection/suppression provisions appropriate to the specific solvent chemistry are standard design elements. The suppression medium itself is a design choice: some SRUs use an inert gas (nitrogen) suppression system rather than water for carbon-bed fire suppression, since water introduced into a hot carbon bed can itself present hazards (including localized steam generation and disruption of the bed structure) and can complicate condensate quality afterward — the appropriate choice depends on the specific solvent, bed configuration and site fire code requirements.

13.5 Vacuum System Integrity & Operational Reliability

Vacuum-regeneration systems (§9.3) are inherently more sensitive to small air in-leakage than atmospheric or pressurized designs, because even a minor ingress path represents a proportionally larger disturbance to a low-pressure system; robust vacuum integrity testing at commissioning and during scheduled maintenance, together with a clear leak-isolation methodology, materially reduces unplanned downtime. As noted in §9.3, some specialized vacuum-system components can also fall under export-control or dual-use regulatory regimes in certain countries, and procurement teams should confirm classification and any licensing requirements early in project planning to avoid delivery delays.

13.6 Emergency Shutdown & Contamination Risk

SRUs incorporate emergency shutdown (ESD) logic tied to LEL, oxygen, temperature and pressure interlocks, with defined safe-state sequences (e.g., nitrogen purge, isolation valve closure) to bring the system to a safe condition without operator intervention. Contamination risk — cross-contamination between solvent batches in shared equipment, or moisture ingress degrading recovered-solvent quality — is managed through dedicated piping/valve segregation where multiple solvent types are processed and through condensate quality monitoring.

13.7 Plant Layout & Utility Placement

Physical layout is a safety decision, not just a space-planning one. A steam or thermal-fluid boiler (see §9.2) is itself a fire and explosion hazard, so its position within the overall plant footprint should limit the consequences of a boiler-related incident rather than maximize piping convenience: locating the boiler centrally, surrounded by adsorber vessels, ductwork and process piping, means a fire or explosion originating at the boiler can affect the entire SRU rather than being contained to one edge of the installation. Layout reviews (often part of a HAZOP or equivalent process hazard analysis) should specifically evaluate utility and ignition-source placement — boiler, electrical switchgear, vacuum pumps — relative to the rest of the plant footprint, not only relative to piping runs and civil works cost.

14. Digitalization & Industry 4.0

Modern SRUs are controlled through PLC logic integrated with plant-level SCADA systems, providing real-time visibility of bed status, temperatures, pressures, oxygen/LEL readings and cycle timing. Industry 4.0 connectivity enables predictive maintenance — using trending of pressure drop, breakthrough timing and regeneration performance to flag carbon aging or developing mechanical issues before they cause an unplanned stop — and remote diagnostics, allowing vendor engineering teams to support troubleshooting without an immediate site visit. Energy monitoring and performance analytics dashboards track specific energy consumption and recovery efficiency over time, supporting both OPEX management and sustainability reporting. Emerging AI-assisted optimization approaches use historical cycle data to fine-tune regeneration timing and temperature profiles for the specific solvent mix and carbon condition at a given site, improving both energy efficiency and carbon service life.

15. DEC.SRU™ Product Range: SMS™ & CBS™

DEC Solvent Recovery Units (SRUs) are available in both skid modular layout (DEC-SMS™ • Smart Modular Systems, pre-built and pre-tested at our workshops) or in full customizable version (DEC-CBS™ • Custom Built Systems, with on-site erection).

15.1 Redundancy in Modular Skid Architecture

Not all "modular" SRU architectures provide the same level of redundancy, and it is worth understanding the distinction when comparing modular offerings across the market. In an independent-skid architecture, each modular unit carries its own complete regeneration loop — its own carbon bed(s), regeneration fan, and condenser — so a fault in one skid's regeneration equipment, control system, or a single component (a valve, a limit switch, a vacuum pump) affects only that skid's capacity, while the remaining skids continue operating normally. In a shared-loop architecture, by contrast, multiple adsorber skids share a common regeneration loop and control system; this can reduce equipment count, but it also means a single fault anywhere in that shared regeneration loop or its control system can take the entire multi-skid installation out of service at once, rather than just the affected unit. When evaluating modular SRU proposals, it is worth asking explicitly whether the regeneration loop, fan and condenser are dedicated per skid or shared across skids, since that answer — more than skid count alone — determines how much real redundancy the "modular" configuration actually provides during maintenance or an unplanned fault.

15.2 Engineering Credentials & Quality Certifications

The engineering content on this page reflects applied experience rather than only theory: DEC's activated-carbon solvent recovery technology lineage traces back to the 1920s [CECA, Carbonisation Et Charbons Actifs], with DEC itself operating since 1946 and now in its third generation of family ownership and management, and design/engineering work is carried out by an in-house, multidisciplinary team of chemical, mechanical, electrical, environmental and civil engineers, supported globally across five continents through a distributed structure of subsidiaries, partnerships, joint ventures, licensees and agencies covering more than 50 countries. Engineering and manufacturing operate under an integrated management system in conformity withISO 9001 (Quality Management), ISO 14001 (Environmental Management) and ISO 45001 (Occupational Health & Safety), hazardous-area equipment follows ATEX/IECEx certification requirements (see §13.1), and pressure-retaining vacuum equipment (RTV™) is designed and manufactured to PED/ASME pressure-equipment codes — atmospheric-pressure RSG™ vessels are generally exempt from this scope. Sector coverage spans the industries detailed in §6 above — including flexible packaging, converting, coating, chemical, petrochemical and pharmaceutical manufacturing — consistent with DEC's broader industries & markets footprint. As of this writing, DEC reports more than 2,500 projects delivered across its installed base; specific installation references by sector are available on request via DEC's references page.
